Technical specifications
Working length: 60 cm
Distal end outside: Ø 3.5 mm
Working channel: Ø 1.2 mm
Field of view: 120°
Viewing direction: 0°
Depth of field: 3 – 50 mm
Resolution: 1,000,000 pixels
Distal end contains 1 CMOS camera chip 1/6 ", 2 light guides, working channel, lens rinsing nozzle
LED light source: 30 W (> 190,000 lux see 150 W xenon)
Angle above: 160°
Angle below: 130°
Angle right / left: 0°
Includes:

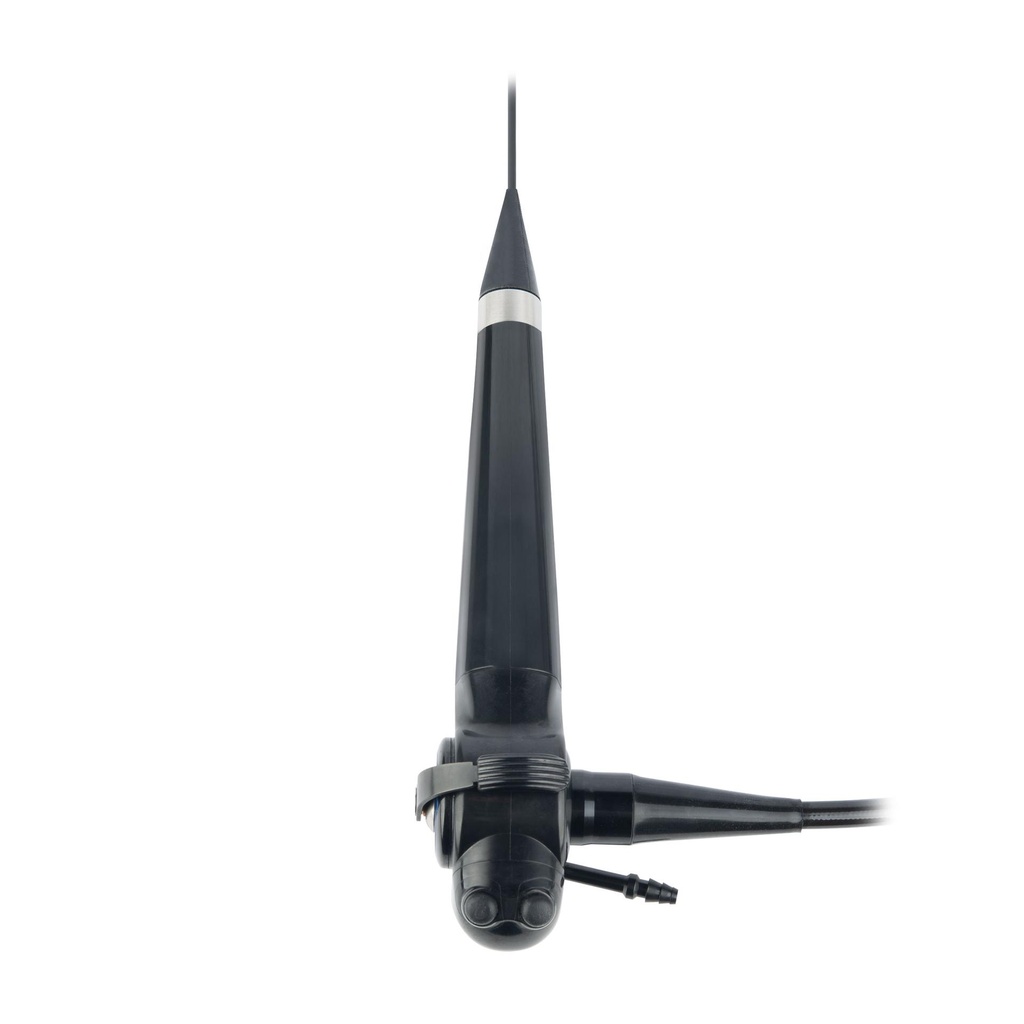

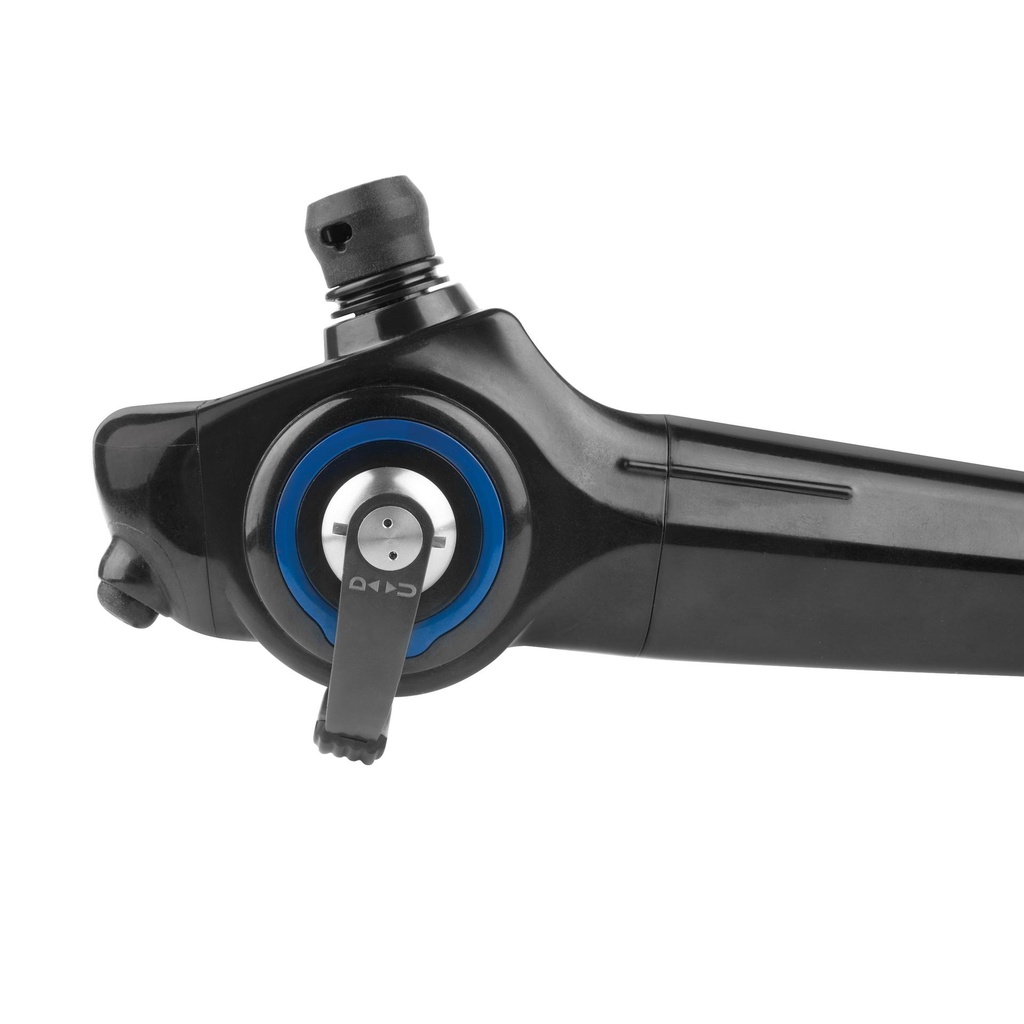

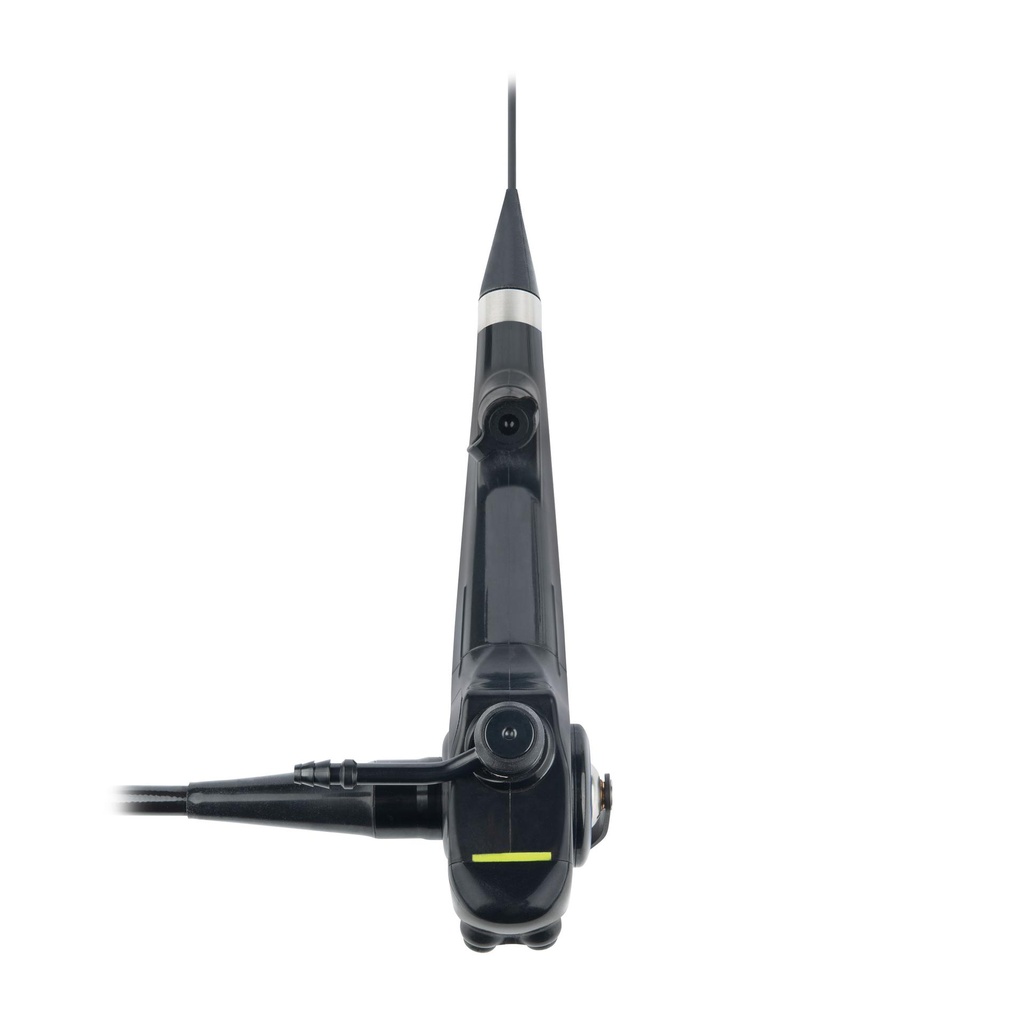

EickView 60 PRO HD video endoscope
Pressure tester
2 cleaning brushes
Cleaning set
Transport case
