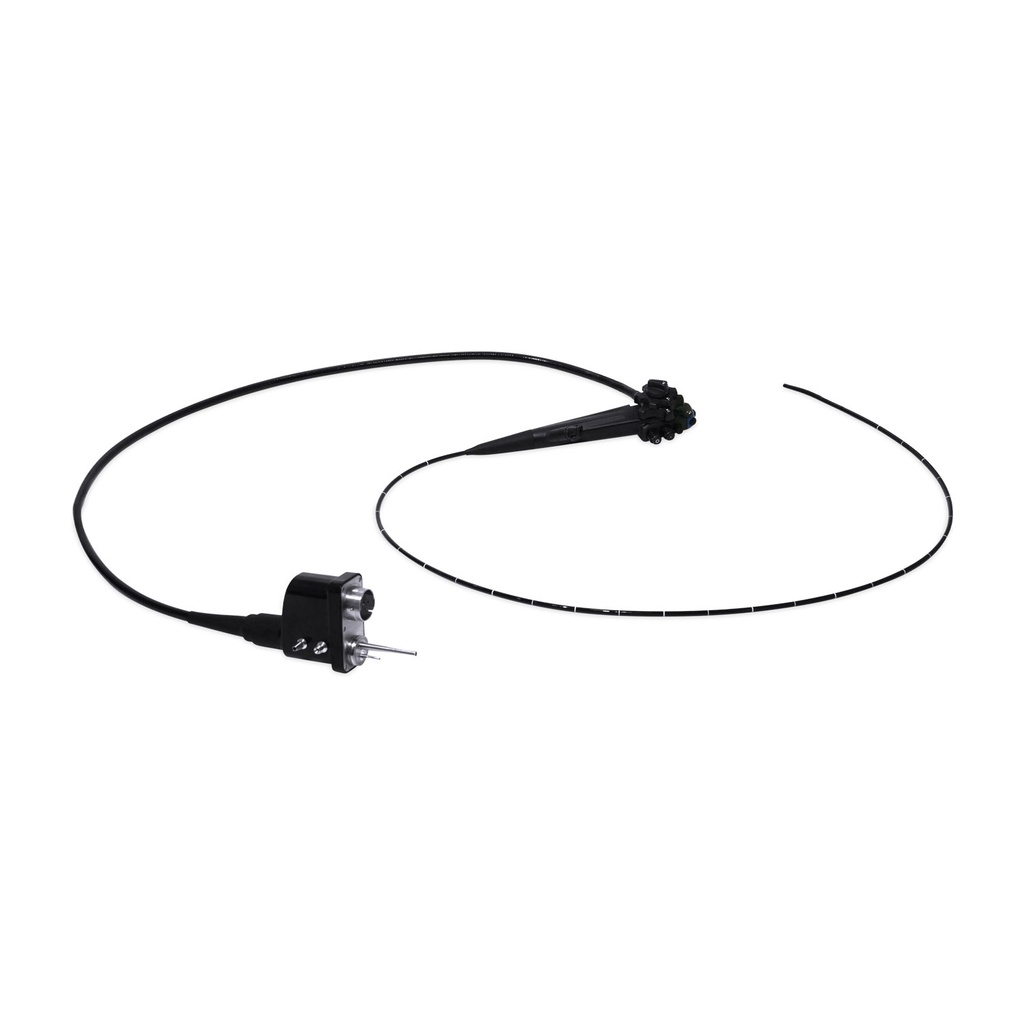

The EickView 350 HD+ video endoscope delivers brilliant images during bronchoscopy and gastroscopy. HD+ endoscopes are characterized by their reduced outer diameters and enlarged working channels. The wide range of available endoscope sizes allows you to perform examinations on everything from small animals to horses.
Technical data
- Usable length: 350 cm
- Outer distal end: Ø 13.0 mm
- Working channel: Ø 3.7 mm
- Field of view: 140°
- Viewing direction: 0°
- Depth of field: 3 – 100 mm
- Resolution: 1,000,000 pixels

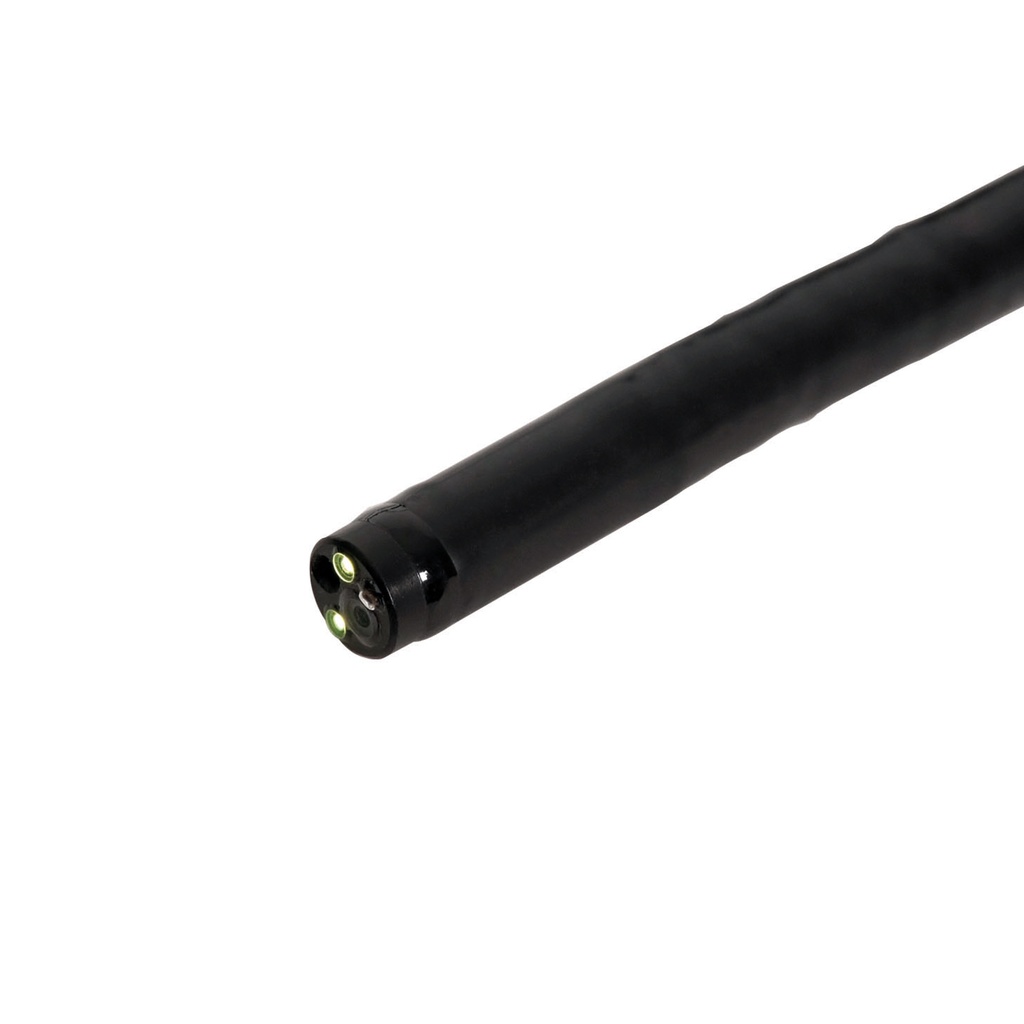

- The distal end includes one 1/6" CMOS camera chip, two light guides, a working channel, and a lens rinsing nozzle.
- LED light source: 30 W (>190,000 Lux cf. 150 W Xenon)
- Angle at the apex: 180°
- Bend angle below: 180°
- Right/left angle: 160°
Delivery contents
- EickView 350 HD+ video endoscope, pressure tester, cleaning kit, carrying case
**Semi-disposable cleaning brushes not included - please order part number 30627002**
